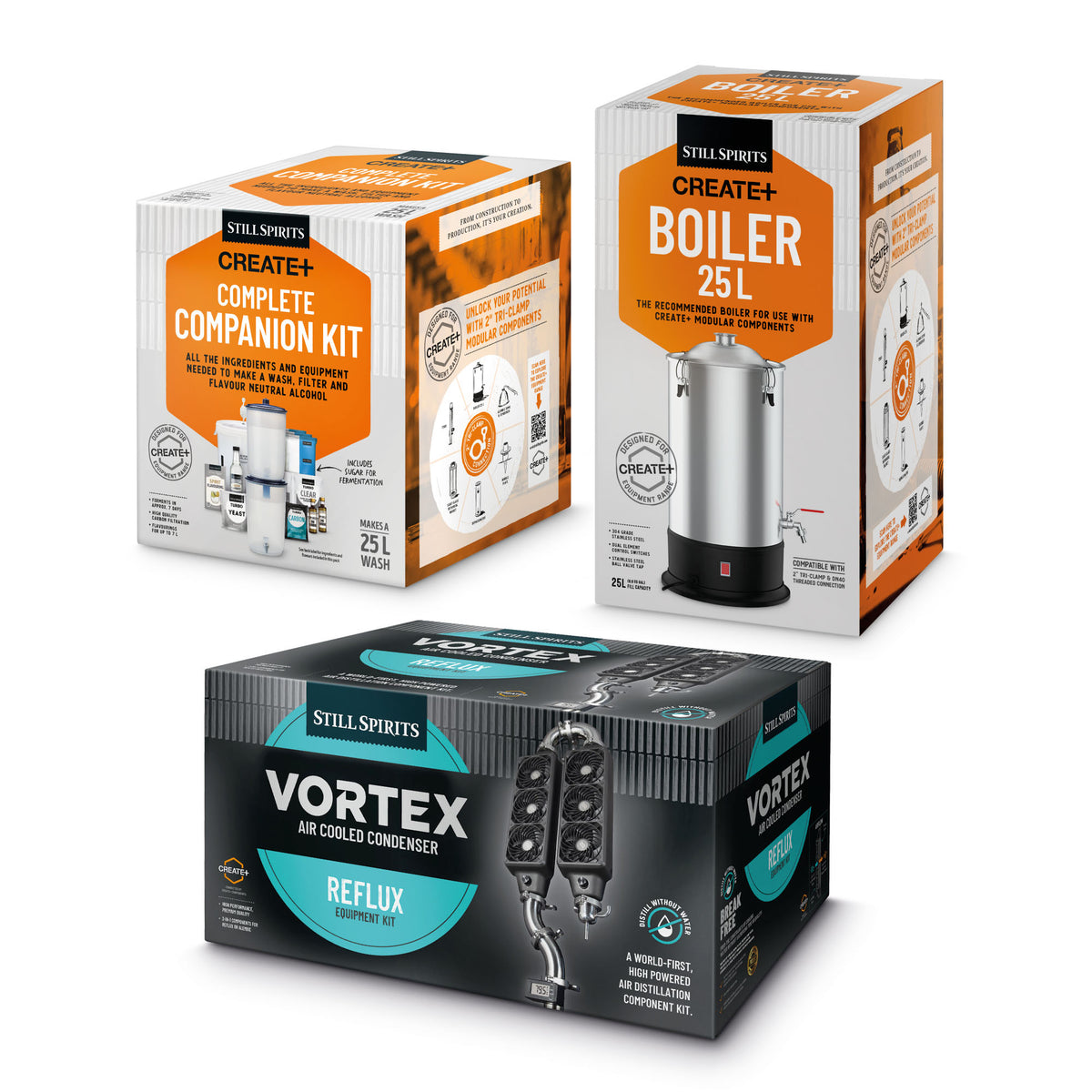

Vortex Reflux Complete Distillery Bundle

Engineered for simplicity and efficiency, the VORTEX Reflux Equipment Kit and Create+ Boiler 25 L bundle provides a high-performance reflux distilling system that produces exceptionally clean distillate.

It's 2" tri-clamp connection allows for it to be connected and reconfigured with additional 2" tri-clamp accessories, so you have the option to experiment with different setups and attachments. The VORTEX Reflux column features a world-first, air-cooled condenser design that allows you to run a fully air-cooled reflux distilling setup without the need for any cooling water.  Ideal for both novice and experienced distillers, the VORTEX redefines convenience and freedom in home distillation.

With a maximum capacity of 25 litres, the Boiler 25 L features dual element control switches, providing more control during distillation. It comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories.

Bundled with the CREATE+ Complete Companion Kit which contains all the ingredients and equipment needed to make a wash, filter, and flavour neutral alcohol, this bundle has everything needed for high-quality reflux distilling.


VORTEX Reflux Equipment Kit:
• Dimensions: H 37 cm x W 33 cm x D 61 cm
• Weight: 10.6 kg
• Warranty: 3 years
• Ease of Use: Intermediate
• Average water use during distillation: NONE
• Yield: 8 L (2.1 US Gal) of 40% ABV alcohol per 25 L (6.6 US Gal) wash (based on using the standard recipe of 6 kg (13.2 lb) of sugar**
• Purity: Distills at up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)**
• Designed in New Zealand
• Connects to 2" tri-clamp distilling accessories
• Suitable for use in distilling water and alcohol.
• 304 Stainless Steel (Create+ Components and VORTEX product pathway tubes); 1060 Aluminium (VORTEX fins)
• High temperature resistant food grade silicone (2" gaskets)
• Comes with stainless steel and copper saddles for column packing
• 2-in-1 Equipment Kit: can be reconfigured for air cooled alembic distillation
CREATE+ Boiler:
• Capacity: 25 L
• Dimenions: H 64 cm x W 36 cm x D 37 cm
• Weight: 5.42 kg
• Power: 2200W (1600W for US/CA Units)
• Warranty: 3 years
• Dual element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W (1600 if using a US/CA unit). When one switch is in the OFF position, it will only consume 1100W (or 1100W/500W if using a US/CA unit) of power.
• Designed in New Zealand
• Boil dry reset
• Thermal cut out fuse
• Waste discharge tap with a stainless-steel ball valve
• Boiler lid with 48 mm opening
• 25 L Boiler capacity
• Connects to 2" tri-clamp distilling accessories
• 304 grade sainless steel construction
• High temperature resistent food grade silicone

CREATE+ Complete Companion Kit:
• 6 kg Turbo Sugar
• Cold Water Cleaner Detergent
• No Rinse Sanitiser
• Hydrometer
• Alcometer
• Distilling Conditioner
• Top Shelf Select Finest Reserve Whiskey
• Top Shelf Select Liqueur Rhubarb & Ginger Gin
• Top Shelf Vodka
• Top Shelf Spiced Rum
•  5 L Plastic Jug
• Turbo Pack (including Classic 6 Yeast, Carbon & Clear)
•  30 L Fermenter with airlock, grommet, tap, and thermometer strip
• Mixing spoon
• Easy Filter System

**Per 25 L (6.6 US Gal) Turbo Classic 8 Production pack wash using the Create+ Boiler 25 L and VORTEX Reflux Equipment Kit.
